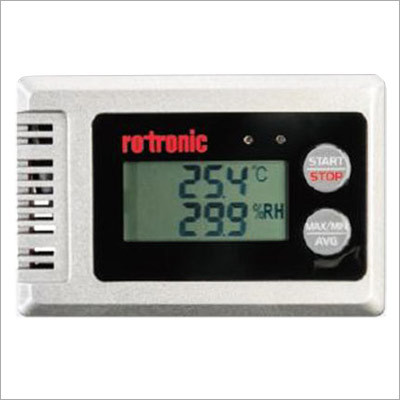

Compact, Dependable and Inexpensive

Compact, Dependable and Inexpensive
Compact, Dependable and Inexpensive
Product Code : HL1-D
Product Description

Salient Features :

  • High measurement accuracy of +2.0%RH and +-0.3osC
  • Compact with high level of IP protection
  • Large storage capacity: 32,000 data point memory
  • MIN/MAX/AVG statistical function
  • Includes HW4-lite programming / analysis PC software
  • Clear LC display with visual alerts
  • Very long battery life (3 years at logging interval of 5 min.)
  • Conforms to FDA CFR 21 Part 11 / GAMP5

General Specifications :

Parameters

Humidity and temperature

Temperature sensor

NTC

Humidity sensor

ROTRONIC IN-1

Accuracy at 23 oC 15oC

+2.0 % RH / +0.3oC

Range of application

-20...70oC / 0...100% RH

Protection

IP 67

Weight

85 g

Dimensions

90 x 60 x 23 mm

Logging interval

30 s .. 24 h

Battery

1 x CR2

Battery life

3 years at a logging interval of 5 minutes

Battery charge indicator

Yes (HW4 software, display and LED indicator)

Storage capacity

HL-1D: 16,000 data point memory (RH & T)

Function

TL-1D : 32,000 data point memory (T)

Display

LCD, 2 lines, resolutions 1 decimal

LED indicator

2 LED's
Right LED flashes green during data logging
Left LED flashes red when limits breached or low battery

Communication

USB-Mini port

Adjustment

Humidity 1-point

FDA/GMP compatibility

Conforms to 21 CFR part 11 and GAMP5

Accessory

USB-Mini cable

AC0003

Included

Battery, CR2
Short instruction manual
Function and Calibration certificate
HW4-lite Software key code
