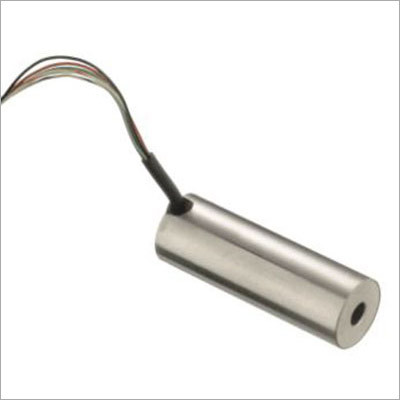

Economy Series AC LVDT

Economy Series AC LVDT
Economy Series AC LVDT
Product Code : AE
Product Description

The E Series of LVDTs is highly economical, satisfying numerous applications in which LVDT performance and reliability are desired, but where budgets are limited. With a linearity of just +0.5% of full range (E 2000, +1.0%), the E Series is suitable for most applications with moderate operating temperature environments. Housed in magnetic stainless steel for protection against electromagnetic and electrostatic interference, the E Series rugged construction is capable of resisting the shock and vibration of most industrial applications.

Like in most of our LVDTs, the E Series windings are vacuum impregnated with a specially formulated, high temperature, flexible resin, and the coil assembly is potted inside its housing with a two-component epoxy. This provides excellent protection against hostile environments such as high humidity, vibration and shock.

Details :

  • Economical
  • Stroke ranges from ± 0.1 to ±2 inch
  • AC operation, 50Hz to 10kHz
  • Magnetically shielded case
  • Available with imperial or metric core

Features :

  • Customary LVDT performance
  • AISI 400 Series stainless steel case
  • Imperial or metric core

Applications :

  • General industrial
  • Moderate operating temperature environments
  • Cost sensitive applications

Mechanical Specifications :


E 100

E 200

E 300

E 500

E 1000

E 2000

Body length "A"

1.75[44.5]

2.25[57.2]

2.77[70.4]

4.56[115.8]

7.05[179.1]

10.57[268.5]

Core length "B"

1.25[31.8]

1.48[37.6]

1.62[41.2]

3.00[76.2]

3.80[96.5]

6.20[157.5]

Bore diameter "D"

0.236[6.00]

0.236[6.00]

0.236[6.00]

0.220[5.59]

0.220[5.59]

0.220[5.59]

Body weight, oz [gram]

1.09[31]

1.27[36]

1.59[45]

1.98[56]

2.43[69]

4.48[127]

Core weight, oz [gram]

0.12[3.4

0.13[3.8]

0.17[4.8]

0.30[8.4]

0.39[11]

0.60[17]
