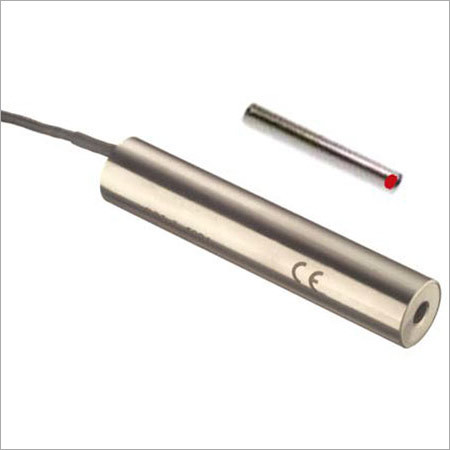

                        Purpose General DC LVDT

                        Purpose General DC LVDT

                        7000.00 - 30000.00 INR

                        Product Details:

                        • Color Silver
                        • Temperature 150-220 Celsius (oC)
                        • Usage For Metrology, Data collection and Process control
                        • Product Type DC LVDT
                        • Material SS
                        • Power DC Volt (v)
                        • Voltage 8.5 to 28 Volt (v)
                        • Click to View more
                        X

                        Purpose General DC LVDT Price And Quantity

                        • 7000.00 - 30000.00 INR
                        • 1 Unit

                        Purpose General DC LVDT Product Specifications

                        • 8.5 to 28 Volt (v)
                        • DC Volt (v)
                        • SS
                        • DC LVDT
                        • Silver
                        • 150-220 Celsius (oC)
                        • For Metrology, Data collection and Process control

                        Purpose General DC LVDT Trade Information

                        • Cash in Advance (CID) Cash Advance (CA)
                        • 100 Unit Per Week
                        • 3 Days
                        • Yes
                        • Sample costs shipping and taxes has to be paid by the buyer
                        • All India

                        Product Description

                        The DC-SE Series LVDTs operate on a single-ended DC power supply, and provide either a 0 to +5VDC or +1 to +6VDC output signal (wiring dependent) over their full range of displacement. The extremely linear and low noise output makes the DS-SE Series the perfect choice for interfacing to unipolar inputs of analog-to-digital converters, PLC's, and various data collection systems.

                        The DC-SE is internally regulated, thus providing immunity to line ripple and allowing operation from unregulated power sources of between 8.5 and 28VDC. The very low typical 6mA current draw is ideal for remote or battery powered applications. The highly stable oscillator provides excellent temperature performance throughout the operating temperature range, while synchronous demodulation insures superb noise rejection.

                        The built-in EMI/ESD protection and the shielded cable permit operation in noisy industrial environments, with double magnetic shielding providing the utmost protection from stray fields.

                        Like in most of our LVDTs, the DC-SE windings are vacuum impregnated with a specially formulated, high temperature, flexible resin, and the coil assembly is potted inside its housing with a two-component epoxy. This provides excellent protection against hostile environments such as high humidity, vibration and shock.

                        Available in a variety of stroke ranges from 0.1 to 6 inches, the DC-EC Series can be configured with a number of standard options including metric threaded core, guided core and small diameter/low mass core.

                        Captive core option: The DC-EC features an optional captive core design (available for most models) that greatly simplifies installation. The core rod and bearing assembly includes a Bronze bearing on the front end for self-alignment, while a PTFE sleeve allows low-friction travel through the stainless steel boreliner (spool tube). The core rod and the bearing assembly are both field serviceable.

                        Also see our other LVDTs with built-in signal conditioning: DC-EC (+DC voltage), HCD (Hermetically sealed, +DC voltage), HC-485 (RS485 digital output), and the HCT-IS (Intrinsically safe, 4-20mA, 2-wire loop).

                        Details :

                        • Single-Ended DC operation
                        • Low 6mA current consumption
                        • Stroke ranges from 0.1 to 6 inches
                        • 0.25% linearity
                        • Stainless steel housing
                        • Double magnetic shielding
                        • EMI/ESD protected
                        • 1 meter long shielded cable
                        • Captive core option

                        Features :

                        • Unipolar DC operation
                        • Low power consumption
                        • Shock and vibration tolerant
                        • Captive core option (available on select models)
                        • AISI 400 Series stainless steel housing
                        • CE compliant
                        • Calibration certificate supplied with each unit

                        Applications :

                        • Factory floor automation
                        • Position feedback
                        • Data collection
                        • Process control
                        • Metrology
                        • Portable / battery powered measurements
                        • General industrial

                        Performance Specifications :

                        Parameter

                        DC-SE 100

                        DC-SE 250

                        DC-SE 500

                        DC-SE 1000

                        DC-SE 2000

                        DC-SE 4000

                        DC-SE 6000

                        Stroke range

                        0.10 (2.54)

                        0.25 (6.35)

                        0.50 (12.7)

                        1.0 (25.4)

                        2.0 (50.8)

                        4.0 (101.6)

                        5.0 (152.4)

                        Sensitivity, VDC/inch

                        50

                        20

                        10

                        5

                        2.5

                        1.25

                        0.833

                        Sensitivity, VDC/mm

                        1.97

                        0.787

                        0.394

                        0.197

                        0.098

                        0.0492

                        0.0328

                        Input voltage

                        +8.5 to +28VDC

                        Line regulation

                        1mV/VDC, maximum; 0.2mV/VDC, typical

                        Input current

                        10mA maximum; 6mA typical

                        Output voltage

                        0 to +5VDC (4 wire), +1 to +6VDC (3 wire) - Increases when the core is displaced towards the cable

                        Output current

                        5mA maximum

                        Non-linearity

                        +0.25% of FR, maximum

                        Output ripple & noise

                        10 mVRMS, maximum

                        Stability

                        0.125% of FSO

                        Temp. coefficient of sensitivity

                        0.028%/oF [0.05%/C], maximum

                        Frequency response

                        200 Hertz @ -3dB
