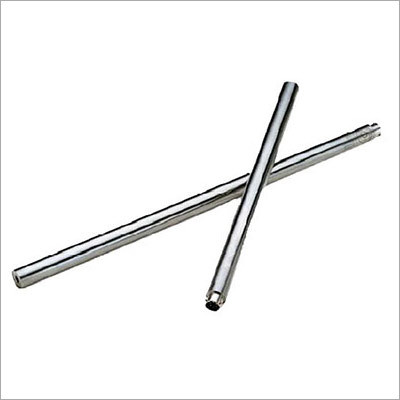

LVDT Transmitter Systems

LVDT Transmitter Systems
LVDT Transmitter Systems
Product Code : HCT IS
Product Description

We are the dynamic, business-oriented firm, ranking among the utmost entities in importing and exporting a wide assortment of LVDT Transmitter Systems. This transmitter is used for use in hazardous locations. Measurement ranges from 0.25" to 10.0", self-contained electronics and hermetically sealed housing is some features of given product range. Patrons can avail this transmitter from us in number of specifications as per the information laid down by our customers. Also, prestigious customers can avail the LVDT Transmitter Systems from us at industry leading price.

Technical Specification :

Linear Range (in)

0.25, 0.50, 1.0, 2.0, 5.0, 10.0

Non-linearity :
0.25" - 5.0"
10".0


<0.5%
<1.0%

Output

4-20 mA, two-wire loop

Loop Supply

12.75 to 28.0 VDC

Max Loop Resistance

600 @ 28 VDC

Output Noise and Ripple

25 µA Pk-Pk (max)

Operating Temperature Range

-13F to 185F (-25oC to 85oC)

Temperature Coefficient of Sensitivity

0.04%/osC (max)

Stability

0.10% after 30 minute warm up

Frequency Response

50 Hz min (-3dB)

Controls

None Required

Termination

6-pin hermetically sealed MS connector

Mechanical Specifications :

HCT Series

Weight

A (Body)

Dimensions

Model Number

LVDT Weight

Core Weight

B (Core)

C

P

Oz

Gm

Oz

Gm

In

Mm

In

Mm

In

Mm

In

Mm

HCT 250 IS

3.04

86

0.11

3

4.39

111.5

1.25

31.75

1.91

48.5

0.96

24.3

HCT 500 IS

3.63

103

0.18

5

5.51

140.0

1.80

45.7

3.11

79.0

1.52

38.7

HCT 1000 IS

4.38

124

0.29

8

6.92

175.8

3.00

76.2

4.46

113.3

2.23

56.6

HCT 2000 IS

5.38

153

0.38

11

9.18

233.2

3.80

96.5

6.72

170.7

3.36

85.2

HCT 5000 IS

6.51

185

0.38

11

12.28

311.9

3.80

96.5

9.90

251.5

4.91

124.6

HCT 10000 IS

12.93

367

0.62

18

21.59

548.4

6.20

157.5

19.22

488.2

9.56

242.8
